- Stock: In Stock
- Model: EVO3600X
- SKU: EVO3600X
- MPN: EVO3600X
Available Options
More from this brand

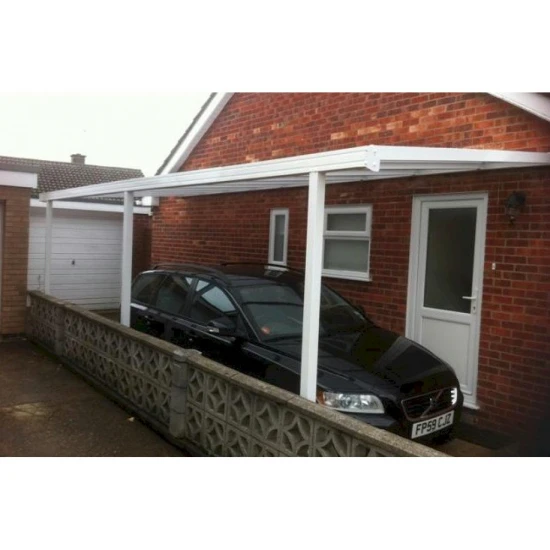

Large Carport or Garden Canopy
A high-performance, made-to-measure aluminium canopy system designed to enhance and protect your outdoor space. Perfect for residential gardens, commercial properties, and everything in between.
Versatile Applications
Transform your outdoor areas with a solution tailored to your needs. The Evolution Canopy is ideal for covered seating areas, play zones, patio canopies, decking covers, cycle shelters, smoking areas, and carport protection. Whether creating year-round outdoor living or safeguarding vehicles, this system adapts to your vision.
Premium Construction
Maintenance-Free Durability Our all-aluminium frame features a powder-coated finish that resists corrosion, weathering, and fading. Once installed, it requires virtually no upkeep—just occasional cleaning to maintain its appearance.
Integrated Drainage System The integral eaves beam and box gutter efficiently channels water away through supporting posts, eliminating pooling and protecting the structural integrity of your installation.
Quality Glazing Standard 16mm triple-wall polycarbonate panels provide excellent insulation, UV protection, and natural light. Choose from clear for maximum brightness, bronze for subtle warmth, or opal for softer, diffused light.
Complete Installation Kit. Every canopy comes supplied with all fixings and sealants required for professional installation, so there is no need to source additional components.
Bespoke to Your Needs
This is a made-to-measure product, custom-built to your exact specifications and dimensions. Because each system is individually engineered for your space, orders are non-refundable from the point of confirmation.
Contact us to discuss your project and receive a personalised quote tailored to your requirements.
Posts:
- 2.25m as standard
3m posts available
- Widths 2.5m 3m - 2 posts
- Widths 3.5m - 6m - 3 posts
- Width 7m - 4 posts
Delivery Times
How Long Does it take to deliver? Manufactured and delivered in approximately 15 - 30 working days, depending on the colour ordered
Technical Information.
- Wall Plate: 115mm High 70mm Wide
Eaves Beam: 115mm High 80mm Wide
Edge Bars: 80mm High, 30mm Wide
Main Bars: 60mm + Top Cap 3mm High 50mm Wide
Posts: 75mm x 75mm
They can be made in any size and are free-standing. Call for a quote.
Select from 5o, 10o, or 15o pitch
White as standard. Also available in most RAL colours; call for a quote
Please note: The 3.6m projection relates to the slope length; therefore, the horizontal projection will vary depending on the selected roof pitch.
More Information
The High-Performance
This exciting new system encompasses a modern design with clean sight lines, providing ease of installation. In addition, its high structural performance ensures this system is an ideal choice for domestic, DIY, and commercial applications.
This highly versatile system offers a solution for many applications, such as:
Recreational & Leisure
- Covered seating areas
- Picnic shelters
- Park pavilions
- Outdoor amphitheatres
- Children's play areas
- Sports court shelters
Transportation & Parking
- Multi-vehicle carports
- Coach and bus shelters
- Cycle storage shelters
- Motorbike parking covers
- EV charging station canopies
Commercial & Hospitality
- Outdoor dining areas
- Beer garden canopies
- Market stall covers
- Café terraces
- Event marquee alternatives
- Queue management shelters
Facilities & Amenities
- Smoking shelters
- Bus stop canopies
- Train platform shelters
- Public restroom forecourts
- Caravan and motorhome storage
Residential
- Residential carports
- Garden patios
- Decking covers
- Hot tub enclosures
For specific non-standard projections, please contact us for technical support.
The kits have all the fixings and sealants required for a standard installation and include a comprehensive fitting guide.
System Features
• The system is manufactured in maintenance-free powder-coated aluminium, white as standard. Any RAL number colour is available at extra cost and lead time.
• Glazed with 16mm triple-wall UV-stabilised glass, this product offers greater design flexibility and enhanced strength and rigidity. It is available in clear, bronze, or opal tints.
• The eaves beam cleverly doubles as an integral box drain, utilising the support posts as downpipes. Rainwater exits through the variable-height post feet.
• The system can accommodate pitches from 5 degrees to 15 degrees. On standard modular kits, the maximum projection is achieved at a pitch of 5 degrees.
• In addition to the standard lean-to configuration, the system can be specified as a gable roof design with the wall plates bolted back-to-back to form a ridge supported between two host walls or as a free-standing option supported on posts.
Installation Guide - Click Here
Free Shipping Terms:
Free shipping is available for deliveries to mainland UK addresses only. This excludes the Scottish Highlands and other remote areas. We reserve the right to refuse delivery to any address at our discretion.
| Dimension | |
| Length of Slope (mm) | 3600mm |
| Length against back wall (mm) | variable 2.5m - 7m |
| Post Height options | 2.25m standard / upgradable to 3m |
| Roof Pitch options | 5, 10, or 15 degrees |
| Min clear height above wallplate | 0 |
| Design | |
| Panel Material & Thickness (mm) | 16mm Polycarbonate |
| Panel Colour options | Clear, Opal, Bronze |
| Frame Colour Options | White / Other RAL colours available on application |
| Cantilever / post supported | Post supported |
| Number of posts | Widths 2.5m & 3m - 2 posts Widths 3.5m - 6m - 3 posts Width 7m - 4 posts |
| Guttering | Integral |
| Delivery Times | |
| Delivery Times | 5 working days |
