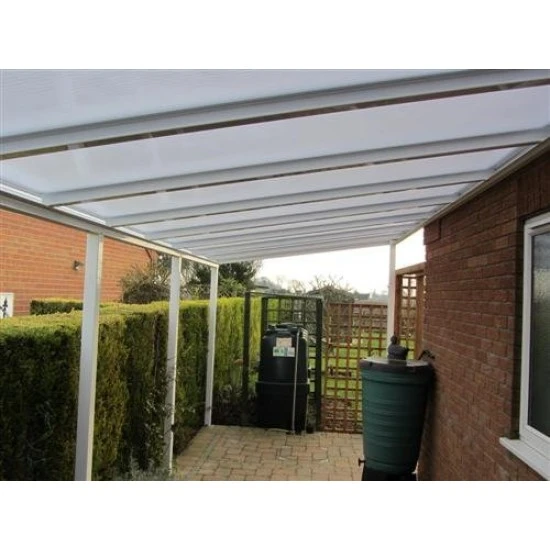

Aluminium Side Alley Roof Walkway System
A narrow roof solution designed to cover tight gaps and confined spaces with a contemporary, durable design.
Ideal For
This versatile canopy system is perfect for protecting and sheltering alleyways, cycle storage areas, and smoking shelters. Whether you need to bridge a narrow passageway or create a weather-protected zone in a compact space, this system delivers practical coverage.
Key Features
Durable Construction Our all-aluminium frame features a maintenance-free, powder-coated finish that resists corrosion and requires minimal upkeep over time.
Integrated Drainage The integral eaves beam and box gutter system efficiently channels water away through the supporting posts, eliminating pooling and ensuring proper water management.
Quality Glazing Standard 16mm triple-wall polycarbonate panels provide excellent insulation and weather protection. Choose from clear, bronze, or opal finishes to suit your aesthetic and light requirements.
Complete Installation Package Every kit comes supplied with all fixings and sealants needed for straightforward installation, so you have everything required in one delivery.
Customisation
Additional roof projections are available to extend coverage as needed. Please contact us for configuration options tailored to your specific space and requirements.
Posts: 2.25m as standard or upgrade to 3m posts (optional)
Widths 2.5m & 3m - 2 posts
Widths 3.5m - 6m - 3 posts
Widths 7m - 4 posts
Delivery Times
How Long Does a canopy carport take to deliver? Most Evolution canopies are manufactured and delivered in approximately 6-8 weeks.
Technical Specification
Wall Plate: 115mm High 70mm Wide
Eaves Beam: 115mm High 80mm Wide
Edge Bars: 80mm High 30mm Wide
Main Bars: 60mm + Top Cap 3mm High 50mm Wide
Posts: 75mm x 75mm
The Evolution canopy can be made in any size and is also free-standing. Call for a quote.
Select from 5 °, 10 °, or 15 ° pitch when ordering.
The evolution canopy is white as standard. Also available in most RAL colours, call for a quote.
Please note: The 1.6m relates to the slope length; therefore, the horizontal projection will vary depending on the selected roof pitch.
More Information
The High-Performance Canopy System
The Evolution Canopy is an exciting new system. Its modern design and clean sight lines make installation easy. In addition, its high structural performance makes it ideal for domestic, DIY, and commercial applications.
This highly versatile system offers a solution for many applications, such as:
• carports
• covered seating areas
• covered play areas
• porches
• patio canopies
• caravan shelters
• cycle shelters
• smoking shelters
• walkway covers
The system can be supplied in modular kit format (please see size matrix) or in bespoke sizes and configurations.
For specific non-standard projections, don't hesitate to contact us for technical support.
The kits include all the fixings and sealants required for a standard installation and a comprehensive fitting guide.
System Features
• The system is manufactured in maintenance-free powder-coated aluminium, white as standard. Any RAL number colour is available at extra cost and lead time.
• The canopy is glazed with 16mm triple-wall UV-stabilised polycarbonate sheeting, offering greater canopy design flexibility and enhanced strength and rigidity. It is available in clear, bronze, or opal tints.
• The standard canopy range is available on a 5 working day lead time.
• The eaves beam cleverly doubles as an integral box gutter, utilising the support posts as downpipes. Rainwater exits through the variable-height post feet.
• The system can accommodate pitches from 5 degrees to 15 degrees. On standard modular kits, the maximum projection is achieved at a pitch of 5 degrees.
• In addition to the standard lean-to configuration, the system can be specified as a gable roof design with the wall plates bolted back-to-back to form a ridge supported between two host walls or as a free-standing option supported on posts.
Installation Guide Read More
Free Shipping Terms:
Free shipping is available for deliveries to mainland UK addresses only. This excludes the Scottish Highlands and other remote areas. We reserve the right to refuse delivery to any address at our discretion.
| Dimension | |
| Length of Slope (mm) | 1600mm |
| Length against back wall (mm) | Variable 2.5m - 7m |
| Post Height options | 2.25m standard / upgradable to 3m |
| Roof Pitch options | 5, 10, or 15 degrees |
| Min clear height above wallplate | none |
| Design | |
| Panel Material & Thickness (mm) | 16mm Polycarbonate |
| Panel Colour options | Clear, Opal, Bronze |
| Frame Colour Options | White / other RAL colours available on application |
| Cantilever / post supported | Post supported |
| Number of posts | Widths 2.5m & 3m - 2 posts Widths 3.5m - 6m - 3 posts Width 7m - 4 posts |
| Guttering | Integral |
| Delivery Times | |
| Delivery Times | 5 working days |
