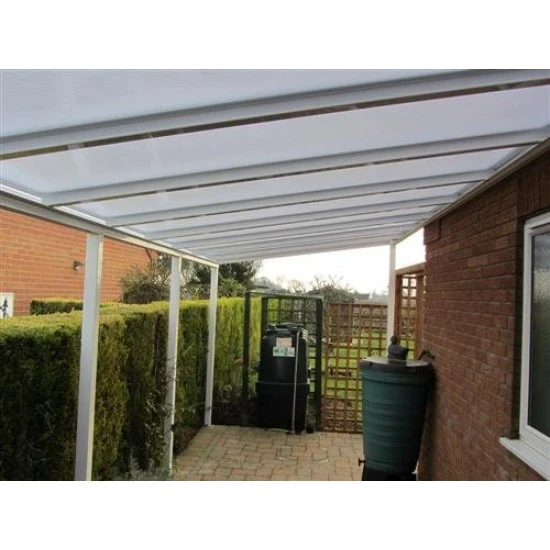

Aluminium Carport Canopy System 2600mm Projection

Lean To Carport Canopy

Applications include carports, covered seating areas, covered play areas, porches, patio canopies, caravan covers, cycle smoking shelters, and school playground areas.

More Projections Available. Follow These Links

Carport Colours

White, brown, and anthracite are the primary colours available in three to four weeks. They are black, but we can produce a carport frame in any RAL colour to suit your needs.( delivery 6-8 weeks)

Features of the canopy system include:

Maintenance-free all-aluminium powder-coated construction
Integral eaves beam/box gutter with drainage through supporting posts
16mm triple-wall polycarbonate glazing as standard in either clear, bronze or opal
Kits are supplied with all fixings and sealants required for installation
Posts:

2.25m as standard
3m posts available - cost £12.00 per post

1. Widths 2.5m 3m - 2 posts
2. Widths 3.5m - 6m - 3 posts
3. Width 7m - 4 posts

Delivery Times

How Long Does a canopy carport take to deliver? Most Evolution canopies are manufactured and are usually delivered in approximately delivery 6-8 weeks, depending on the colour ordered.

Technical Information

Wall Plate: 115mm High 70mm Wide
Eaves Beam: 115mm High 80mm Wide
Edge Bars: 80mm High, 30mm Wide
Main Bars: 60mm + Top Cap 3mm High 50mm Wide
Posts: 75mm x 75mm

The Evolution canopy can be made in any size and is free-standing; call for a quote.

Select from 5 °, 10 °, or 15 ° pitch when ordering.

The Evolution canopy is white as standard and is also available in most RAL colours. Please note: The 2.6m projection relates to the slope length; therefore, the horizontal projection will vary depending on the selected roof pitch.

More Information

The High-Performance Canopy System

The Evolution Canopy is an exciting new system. Its modern design and clean sight lines make installation easy. In addition, its high structural performance makes it ideal for domestic, DIY, and commercial applications.
This highly versatile system offers a solution for many applications, such as:
• carports at 2.6m it is possible, but it is tight for space, so bigger cars would be better suited to a more extended projection
• covered seating areas
• covered play areas
• porches
• patio canopies
• caravan shelters
• cycle shelters
• smoking shelters
• walkway covers

The system can be supplied in modular kit format (please see size matrix) or bespoke sizes and configurations.

For specific non-standard projections, please get in touch with us for technical support.
The kits include all the fixings and sealants required for a standard installation and a comprehensive fitting guide.

System Features
• The system is manufactured in maintenance-free powder-coated aluminium, white as standard. Any RAL number colour is available at extra cost and lead time.
• The canopy is glazed with 16mm triple-wall UV-stabilised polycarbonate sheeting, offering greater canopy design flexibility and enhanced strength and rigidity. It is available in clear, bronze, or opal tints.
• The standard canopy range is available on a five working-day lead time.
• The eaves beam cleverly doubles as an integral box gutter, utilising the support posts as downpipes. Rainwater exits through the variable-height post feet.
• The system can accommodate pitches from 5 degrees to 15 degrees. On standard modular kits, the maximum projection is achieved at a pitch of 5 degrees.
• In addition to the standard lean-to configuration, the system can be specified as a gable roof design with the wall plates bolted back-to-back to form a ridge supported between two host walls or as a free-standing option supported on posts.
