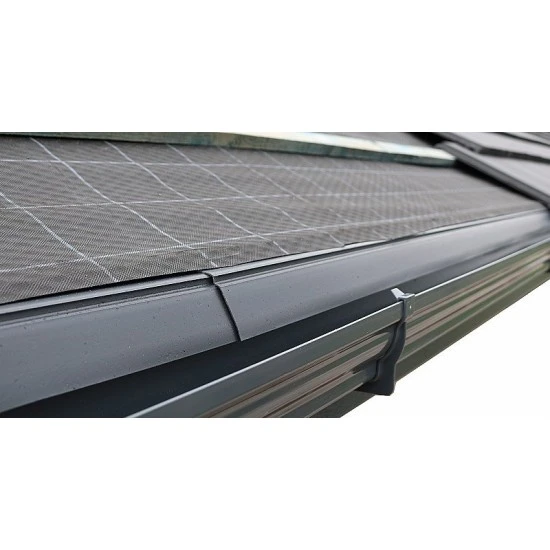

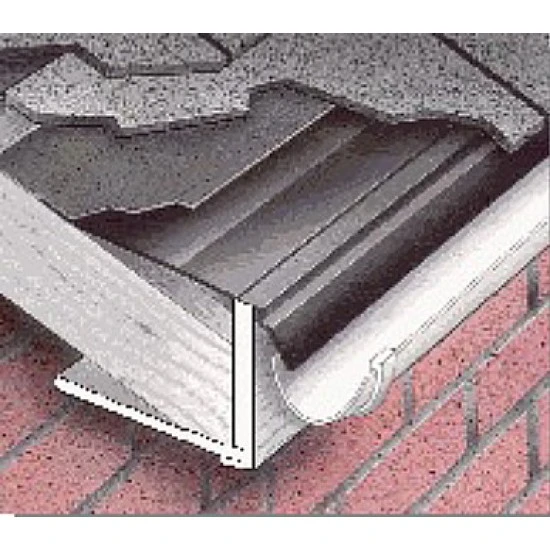

Eaves system trays replace the roof underlay felt edge that protrudes out of the roof and into the guttering Protecting the timber eaves from water penetration behind the fascia board.
The standard 1400 mm FT150 trays are fixed above the fascia board form lightweight rigid support for the lower edge of the underlay, which can be cut back short of the gutter.
Formed from tough, rot-resistant rigid black thermoplastic. The FT150 is recommended for remedial and large roof areas for all slates and tiles.
Minimum order is 5 lengths.
Approx 1.5m lengths which provide a coverage of 1.4m when installed.
From Bristol City Center We aim to deliver most eaves tray orders within a couple of days, but this can vary due to stock levels and demand on our delivery fleet in peak times such as school holidays. Larger contractors orders tend to be placed weeks or months in advance. Guaranteed delivery dates need to be planned by at least four weeks. Whenever possible, we try to use our delivery fleet as this reduces damages and lost packages. When your delivery arrives, there are a few things to consider.
The products should be stored off the floor, and they are best not in direct sunlight if there is protective bubble wrap packaging this must be removed at the time of delivery.The actual storage bags on the boards should have the ends opened. Avoiding overheating due to the sun while in storage is the aim.Boards should be stored out of the way to avoid creating any trip hazards.
Maintenance Very simple once installed the eaves need a very check.Solvents and abrasives should be avoided.
Home Line Freefoam Kestrel Epwin Group Manufactures off different guarantees which come with different conditions attached Having been in the industry for 25 years we know these products are now very reliable and as such you are not likely to have any significant issues There are also conditions relating to the requirements of installation and conforming to building regulations which vary from England Scotland Wales and Northern Ireland.
Description: Side rafter bracket for use on properties with overhanging tiles and exposed joists
Galvanised silver finishSide fix rafter gutter brackets are used when the eaves are exposed and the bottom and sides of the roof joist can be seen from below. Galvansied to reduce maintenance ...
Description: This bracket is nailed to the top of the joist for use on properties with overhanging tiles and exposed joists.
Galvanised Silver finish12 Gauge x 50mm Stainless Steel Fixings for Cast Effect downpipes. These fixing have been designed to blend with the look of cast iron effect fittings...
Description: White guttering half round , 4m long x 112 mm wide x 52mm depth. Should be fitted at 1:350 fall for optimum flow rate.
Manufacturer : Aquaflow
Colour : White
Dimensions : 4m Long x 112mm Wide x 52mm DepthWhite Round Gutter Features : -Good Flow Capacity Pre-Fitted Gutter Seal Retaining Clip System Pre-Lubricated SealsTechnical SpecificationAll Aquaflow Guttering is manufactured from unplasticised polyvinyl chloride (PVC)Comply with the ma..
Description : Gloss White In-Line Running Outlet for use with112mm Half Round Guttering, connects to 68mm Downpipe. Both sides fitted with Rubbers and Clips for a water tight seal.
Manufacturer : Aquaflow
Colour : White..
Description: 112mm Gloss White Stopend Outlet, gets pipes in close to walls. For use with 112mm Half Round Gutter and 68mm downpipe. There is a fixing point on each side which are to be drilled out on which ever side you want to fix it on.
Description: 112mm Gloss White Half Round Gutter External Stop End, fits directly on to the end of 112mm half round guttering. They are fitted with rubber and clip for a watertight seal.
Stelmax 1985 Adhesive Contact Glue Clear 1985 Adhesive is used extensively within the window industry for the installation of frames and attachment
Stelmax 1985 Adhesive is an easily applied PVC resin and solvent based mix which bonds readily to form maintenance free joints of exceptional strength when used to bond both plasticised and rigid PVC and ABS. 1985 Adhesive is used extensively within the window industry for the installation of frames and attachments and i..
