2.0m X 1.0m

2.0m X 1.0m

Brand: Master Plastics
Product Code: FHPORCH2x1
Availability:
In Stock
Price: £1,336.73 Ex Tax: £1,113.94

Available Options

Description

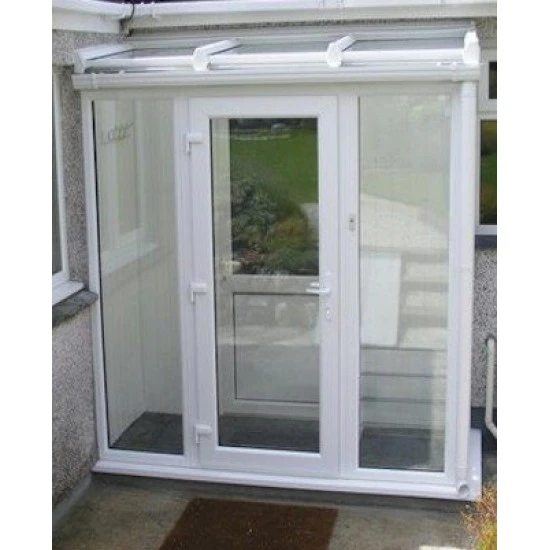

2.0m wide x 1.0m projection Lean To Porch. With full height, fully glazed panels.

As standard you will receive a variable pitch roof to support polycarbonate or glass. 150mm wide cill. Quality door furniture including hinges, lever/lever door handle, lock & key. (Letter box can not be fitted to this porch)
Low-e toughened, A Rated argon filled with warm edge spacer bar double glazed units. Front frame height up to eaves beam 2100mm. Frame height up to wall plate 2400mm This excludes the roof.

Options:

  • Width: Enter the external width required in the box on the right. (up to 2m)
  • Projection: Enter the external projection required in the box on the right. (up to 1m)
  • Roof Glazing: Select from 25mm polycarbonate or glass
  • Opening top windows: Select the quantity you require.
  • Frame Colour: Choose from White, Light Oak or Rosewood.
  • Door Furniture Colour: Select from White, Chrome or Gold.
  • Door Positioning & Opening: Select the location of the door and whether it opens in or out.
  • Cylinder 1 star: The one Star locking cylinder is our anti pick stand lock cylinder
  • Cylinder 3 Star; The 3 Star locking cylinder is our most secure locking system we offer.

Fixing

Start with the cill which is over sized use a straight edge and a level against your house wall over the total height to work out how much cill to cut off. ( or the none technical way is to put the cill in place then use a frame push it to the wall check its level then measure in from the bottom of the frame to wall then cut the cill to size).

Once you're happy with the size of the cill fix down through it in to the brick work or blocks below. (you can either pack the cill so that the top edge is level or bed in on cement) You will need to buy a suitable fixings depending on what sort of base you have.

With timber bases use a size 10 screw if you have blocks bricks or concrete use nylon frame anchors size 8 x 100mm you will need 6 for the base and another 6 x 120mm long for the frames.

Once the cill is fixed you then stand the frames on the cill where two frames come together you will have a h section trim this bangs on to the first frame then second frame then fits in to it.Use self tapping screws to join the frames to each other and to the corner posts. Check the door will open as they some times have transit screws added to them.

Screw all the frames together before fixing them to the wall or cill this will allow you to move it about until you're happy its in the right place. The door needs to be square.

Once you are happy screw it to the cill and fix it to the wall. Put you're fixings were the glass will be going in this will hide them when the job is finished.

Now add the three roof bars bolt them into place add the polycarbonate sheets and top caps finish the flashing so the roof is completely done.

That now leaves the glazing put the glass into place then fix the glazing beads. It can save some time if you give everything a good clean before adding the glazing.

Delivery Service - If you do not have personnel available for unloading the lorry. Please select 2 man delivery in the options. This is a surcharge in addition to the normal delivery charge.
