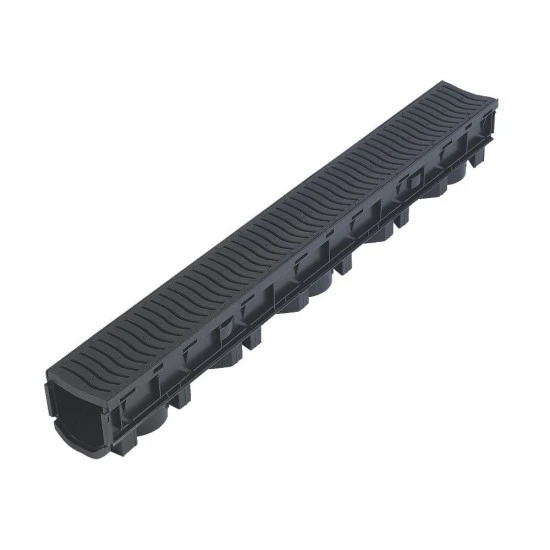

Floplast Drainage Channel
Description:
drain channel with plastic Grate. Simple to install interlocking plastic channels with slots in black plastic grids.
1m.
Linkable channel drain system. Set into the ground at surface level to drain water away.
Suitable for domestic areas where surface water collects such as driveways, pathways, patios and swimming pools.
The square modular design helps when installing with block paving or patio slabs.
Floplast Drainage Channel Features
Optional corner connectors or drainage pipe connectors.
Shallow depth required
Domestic plastic grid.
BS EN 1433:2002 – Drainage channels for vehicular and pedestrian areas. Classification, design and testing requirements, marking and evaluation of conformity.
Flodrain Uses
- can be applied around many domestic areas where surface water collects including:
- Driveways (light vehicles only) garages and pathways.
- Patios and conservatories.
- Swimming pools and sports areas
- Gardens and water features.
- Retaining walls or along the edges of paths.
Technical
• CE marked in accordance with the Construction Products Register.
• Slip-resistant and heel guard.
• Concave design and deeper outlet for improved flow.
• A15 Load rating - Tested to BS EN 1433:2002.
• Interlocking units for easy installation.
• Grate is easily removed with a flat head screwdriver.
• Low threshold for use in front of a door or the bottom of ramps, allowing the installation
to conform to Part M of the Building Regulations.
• Sump trap with an integrated basket to collect debris before it enters the system and easily removable grids to allow annual cleaning.
Flodrain Surface Channel
Details:
1m length. Can connect directly to 110mm drain.
Moulded knock out the bottom outlet.
Universal end cap and outlet combined Deb is trap preventing drain blockage.
Moulded in high grade recycled polypropylene.

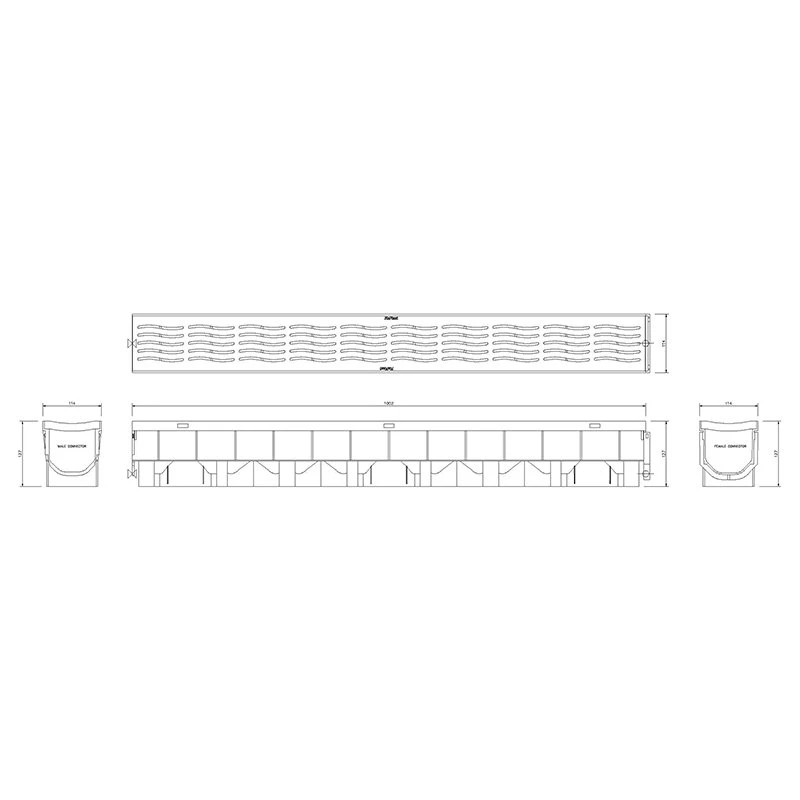

Dimensions:
Length = 1m
Height = 135mm
Width = 100mm internal 150mm External
