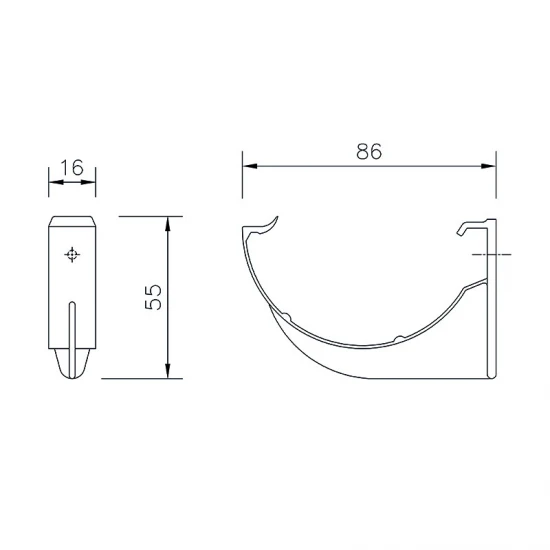

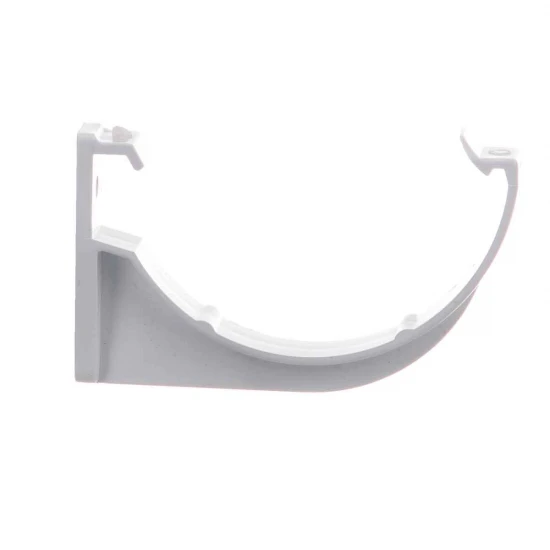

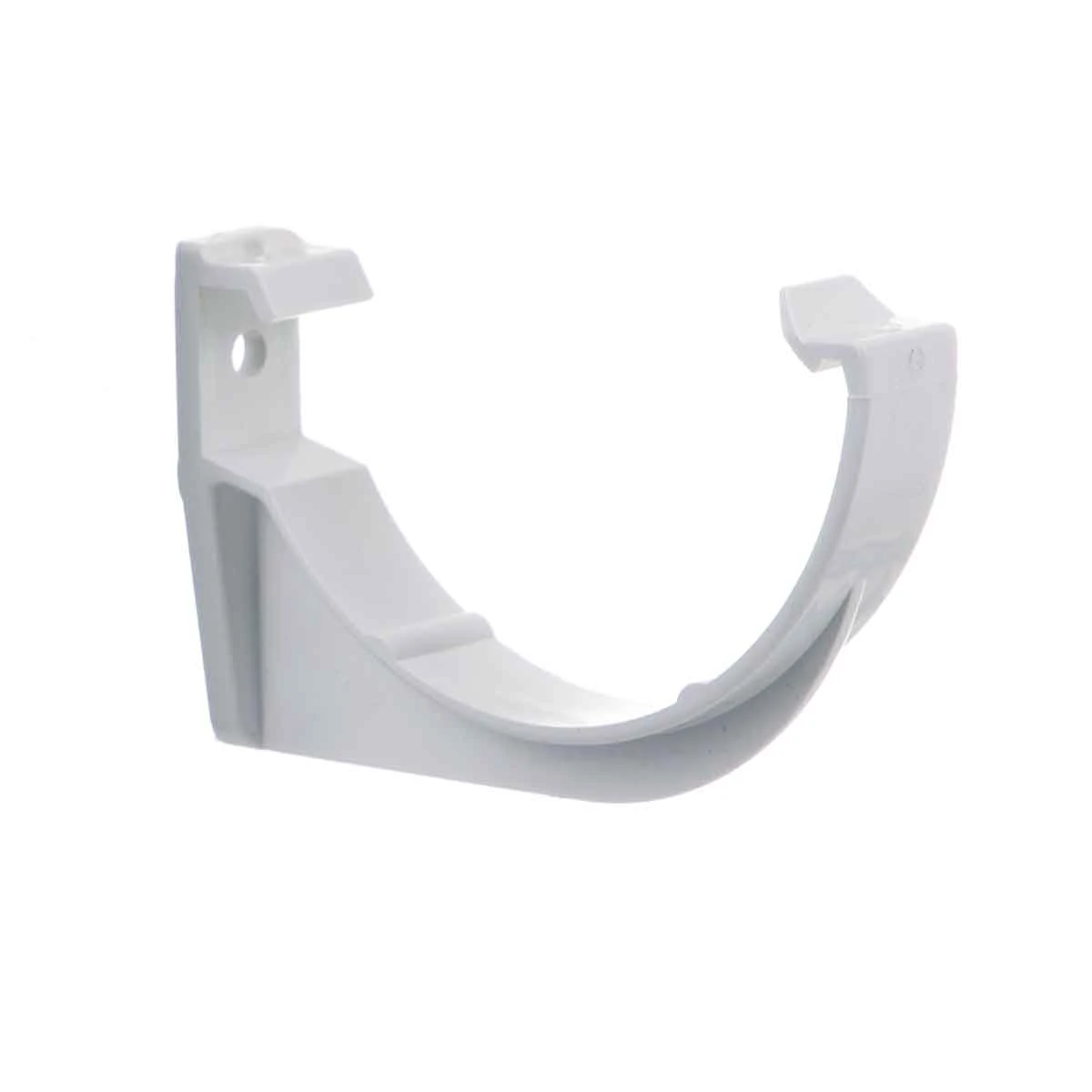

Bracket - 76mm Miniflo - White

Mini Gutter Bracket White 76mm

Name: Bracket - 76mm Miniflo - White
Brand: FloPlast
SKU: RKM1W
Price: 2.28 GBP
Availability: InStock

Under normal conditions fascia, brackets should be positioned so as to avoid the fixing screws splitting the top edge of any timber fascia board.

Use a string line between the bracket and the outlet to determine a straight line (if fitting to a fall, 1:350 is recommended).

All brackets should be secured to the fascia board with two 25mm x 4mm (1” x 8) brass/ zinc plated round heads on mini gutter systems they should be spaced at a maximum of 500mm apart and within 150mm of all fittings. It is better to use too many than not enough due to snow loads.

External and Internal angles unions outlets ann stop ends should have a fascia bracket within 150mm of the fitting.

Description: Fascia Bracket -76mm Miniflo Gutter - White

Colour: White

Manufacturer: Floplast

To make installation easier use a silicone spray or some mild soapy water on the rubbers before clipping them together.

Uses

Bay roof areas
Sheds
Porches
Bike Canopies
Bin Covers
Outbuildings

Maintenance Very simple once installed the mini gutter white system needs very occasional cleaning with mild soapy water and a soft cloth. Solvents and abrasives should be avoided.
