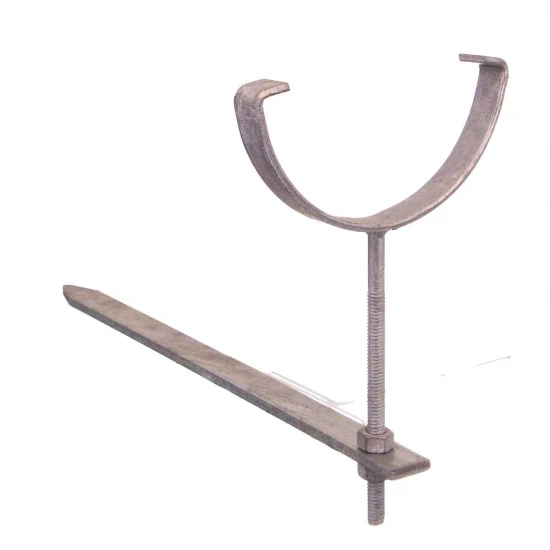

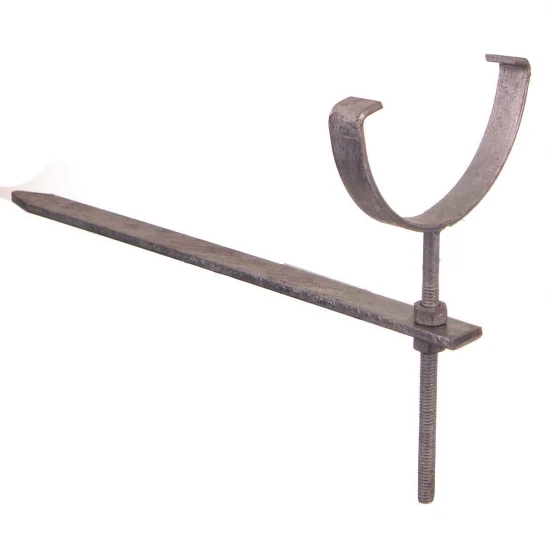

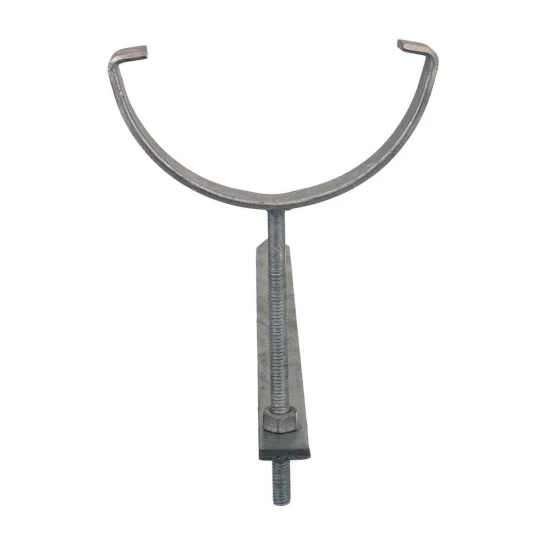

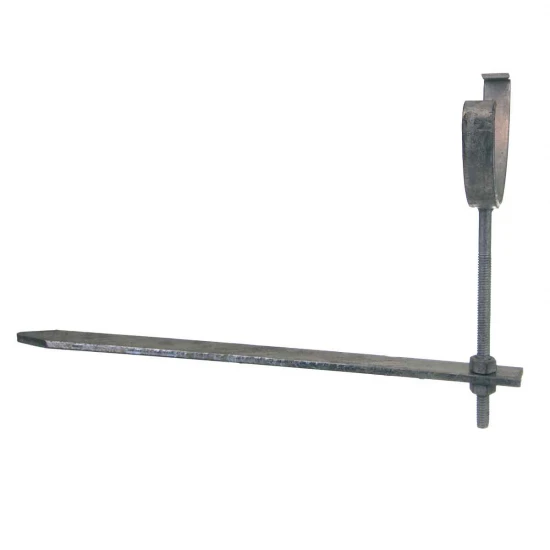

Round Rise And Fall Brackets 112mm Aquaflow

Aquaflow Spike Rise And Fall Brackets Galvanised

Specialized galvanised brackets explicitly designed for standard 112mm round guttering systems. Features adjustable fall mechanism and spike fixing system for secure installation into stonework or timber wall plates.

Key Features:

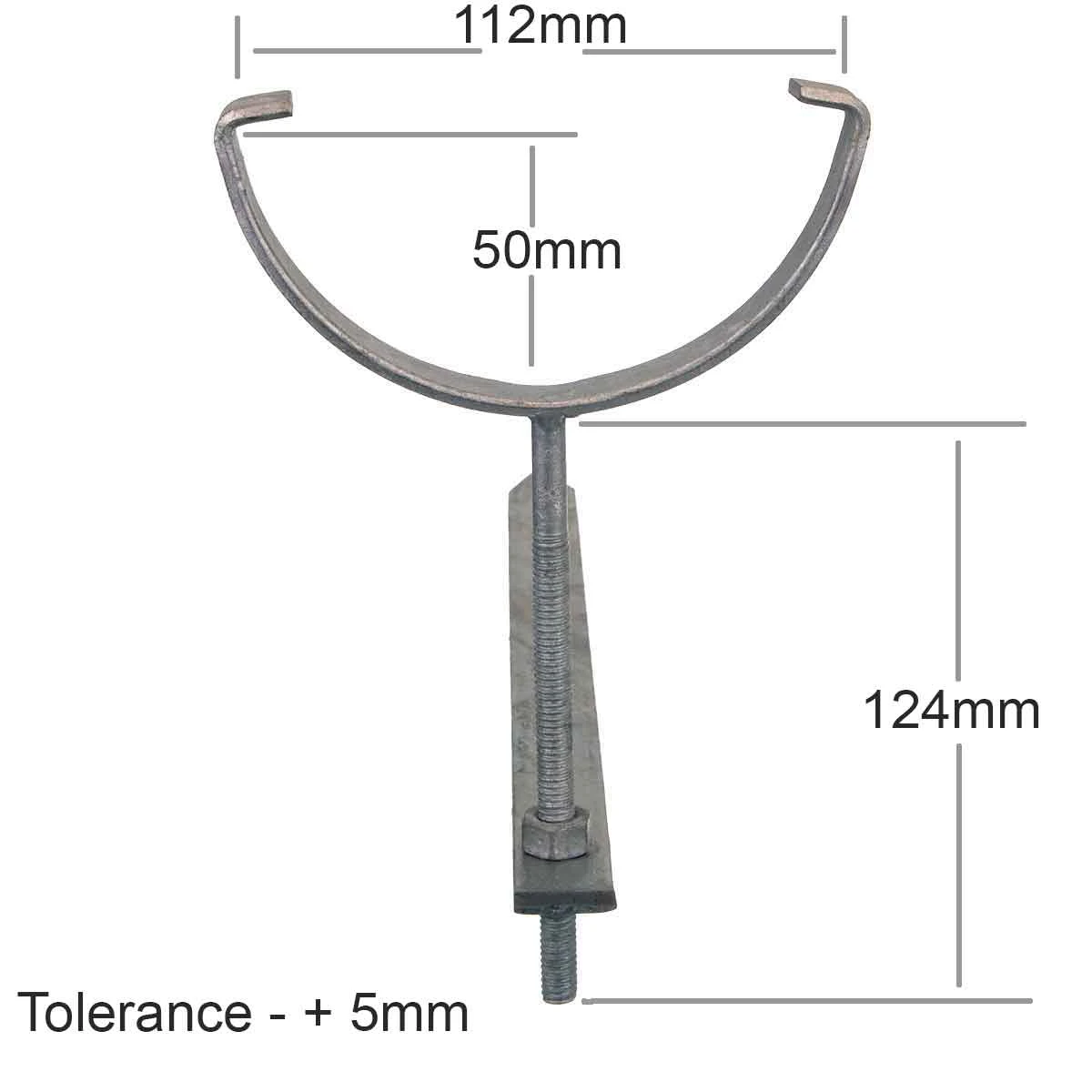

Gutter Compatibility: Specifically designed for standard 112mm round guttering
Finish: Galvanised coating for superior corrosion resistance
Adjustable Fall: Built-in adjustment mechanism for precise guttering gradient
Spike Fixing: Driven directly into the wall for secure mounting
Versatile Installation: Suitable for old stonework or timber wall plate applications
Professional Grade: Robust construction for reliable long-term performance

Applications:

Ideal for:

Historic buildings with old stonework
Properties with timber wall plates
112mm round gutter installations requiring adjustable fall
Renovation projects on traditional construction
Situations where conventional bracket fixing is not suitable

Installation

Bracket Spacing:

Bracket spacing must follow the recommended spacings required to support your specific gutter system. Due to the roof joist configuration, it may not always be possible to achieve ideal spacing. In these cases, additional support joists may need to be installed to ensure the gutter is correctly supported.

Important Notes:

No Set Spacing: The rise and fall system itself has no predetermined spacing requirements, but each type of gutter used will have recommended spacings, normally 800mm
Gutter System Spacing Determined by Manufacturer: Always refer to your gutter manufacturer's specifications for proper bracket intervals.
Structural Considerations: Existing joist layout may require modification or additional support members
Spike Installation: Drive spikes securely into stonework or timber wall plate for reliable mounting

Performance Benefits:

Secure Fixing: Spike system provides reliable attachment in various wall materials
Adjustable Gradient: Ensures proper water flow regardless of building irregularities
Weather Resistant: Galvanised finish withstands harsh weather conditions
