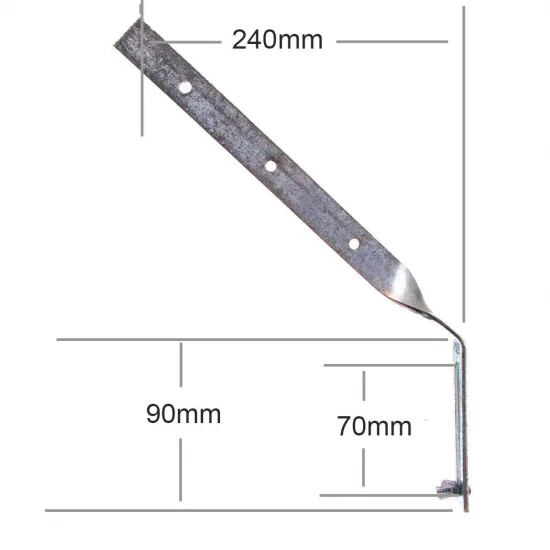

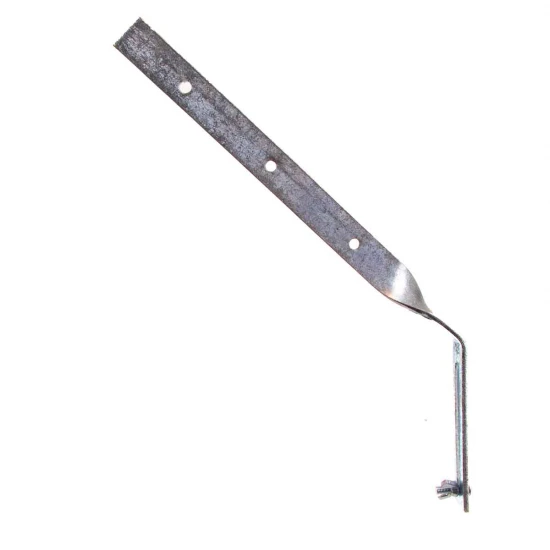

Freefoam Short Rafter Gutter Brackets Galvanised

Side Rafter Freefoam Support Brackets (FR614) Galvanised

Versatile galvanised support brackets designed for guttering installations on properties with overhanging tiles and exposed joists. Features adjustable fall mechanism for precise guttering alignment and easy installation.

Key Features:

Model: FR614 Freefoam Support Bracket
Finish: Galvanised silver for corrosion resistance
Universal Compatibility: Works with round, square, and deep flow gutter systems
Adjustable Fall: Built-in adjustment mechanism for precise guttering gradient
Complete Kit: Supplied with bolt, wing nut, and washer
Exposed Joist Design: Specifically engineered for properties with visible rafter ends

Applications:

Ideal for:

Properties with overhanging tiles
Buildings with exposed joists and rafters
Retrofit guttering installations
Various gutter system types require adjustable support
Situations where precise fall adjustment is critical

Installation Process:

Mounting: Screw brackets into the side of joists or use the top-fix method from above
Connection: Front bracket slot accepts bolt for gutter bracket attachment
Setup: Install the highest-end bracket first, then set the lower end to the required fall
Alignment: Use string line between end brackets to position intermediate supports
Spacing: Follow the manufacturer's recommended bracket spacing for your gutter system

Performance Benefits:

Adjustable Fall: Eliminates guesswork in achieving proper water flow gradient
Durable Finish: Galvanised coating provides long-term weather protection
Flexible Installation: Accommodates various mounting scenarios and gutter types
Professional Results: The string line method ensures consistent, straight installation
