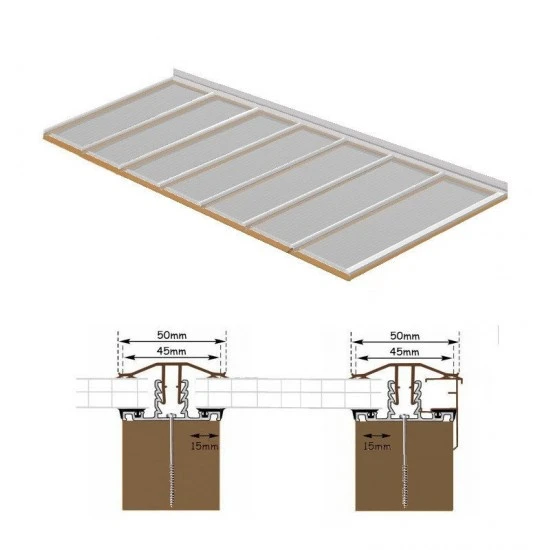

3.0 m Long x 7 m

The lean to roofing kit measuring 3 metres long by 7 metres wide provides commercial-scale coverage for businesses and large residential projects throughout Bristol and Bath, delivering an exceptional 21 square metre roofing solution with premium customization options including clear, bronze, or opal sheet finishes combined with white, brown, or grey structural bars to achieve optimal aesthetic integration with demanding commercial and architectural requirements. This substantial system offers outstanding design flexibility, allowing facility managers and property owners to specify transparent sheets for maximum natural light transmission in commercial spaces, bronze for sophisticated solar control and glare reduction in retail environments, or opal for optimal light diffusion with enhanced privacy in applications ranging from Bristol's commercial developments to Bath's heritage business districts and substantial residential estates. The comprehensive colour coordination options enable perfect architectural compatibility, with white bars providing clean modern styling for contemporary commercial buildings, brown bars offering traditional warmth that complements period commercial properties and conservation areas, or grey bars delivering sophisticated industrial appeal suitable for large-scale business and manufacturing applications. The expansive 7-metre width creates substantial linear coverage, ideal for extensive commercial walkways, large loading areas, comprehensive vehicle parking facilities, or extensive outdoor dining and retail spaces, which significantly enhance business operations and the customer experience. The generous 3-metre depth provides excellent weather protection and valuable covered workspace, making it particularly essential for commercial applications where reliable year-round shelter is crucial for operational efficiency, staff safety, and compliance with commercial building regulations. This roofing system is engineered to handle Bristol and Bath's most demanding weather conditions while offering the aesthetic versatility needed to meet stringent commercial planning requirements and architectural guidelines, ensuring superior performance and visual appeal that enhances business functionality and property values throughout the region's diverse commercial and industrial areas.

Price includes (Actual coverage 7.490 mm)
7no 1050mm x 3m polycarbonate roof sheets
8no x 3m bars to fix to timber
2no edge fillets
7no x 1050mm sheet closures
1no x 150mm flash band
Anti-dust tapes

Installation Guide

Step one

Fix your first edge bar as shown in Dia 1. Slide the edge fillet up the groove on the bar as shown, then cut the bar to length, remembering to allow for a 50 mm overhang into the guttering. Cut the aluminium base 2 mm longer than the predetermined length of the polycarbonate sheeting, allowing for the end cap to fit later.
Drill and fix the bar into position,n screw with no less than six screws at 3- 400 mm centres, ensuring the drip on the edge trim is in the required place and neat from the external view. Repeat on opposite end Dia 1.
NB. Where bars are butting against a wall, the edge trim is not required; fit the bar only.

Step two

You can choose to cut all sheets and then evenly space them out, or you can work toward cutting a sheet in half. Once you have decided, start fixing the centre bar in your required position. Drill and fix the bars with screws at 3- 400 mm centres

IMPORTANT REMEMBER TO LEAVE A CLEAR EXPANSION GAP OF 4MM BETWEEN THE BAR AND THE POLYCARBONATE SHEETS.

Step three
Ensure all the rubber gaskets in the bars are flat with no bumps.

Step four
Cut your polycarbonate sheet to the length if not already done, ensuring that all swarf is removed. Use a vacuum or a condensation-free airline to remove swarf (never try to wash it out). Now fit anti-dust tapes to the sheet. Use the solid foil tape on the top of the sheet and the vented tape on the bottom of the sheet. Peellofff the backing tape and stick in place as shown. These tapes reduce condensation and keep out insects and dust, so ensure they are fitted correctly. No, we peel about 50 mm of the protective film down both sides and place the sheet in position.

Step Five
Position the PVCU caps so that the toothed legs locate inside the centre of the aluminium base. Press down firmly, then lightly hammer down with a rubber mallet or equivalent until the caps lock into place. As you work across the roof, complete flashing as you go (see tips).
When the flashing is complete and all caps are in place, remove the protective covering.

Step Six
Fit the end caps into place. Now, cut the sheet closures to the length between the bars and push them in place as shown.

Tips

For polycarbonate cut-to-size orders, please order your polycarbonate sheets after you have fitted your bars. We can then cut, blow, and tape your sheets to the correct size (width and length). NB: Do not forget to allow for expansion when ordering. (P.O.A)
If using lead flashing, ensure the lead (recommended) is fitted before the sheets and dress down as you install the roof panels. Sit your lead in sections of 2m and seal the overlap 100mm with a lead mate.

Cleaning: Use mild soapy water. Try a small panel first to ensure there is no reaction. Never use solvent-based cleaners.
You should not need to use silicone; however, if you do, use only good-quality, low-modulus, neutral clear silicone.
For a good-quality roof that will last the test of time, avoid wide sheets and try to use the recommended width,s: 980 mm or less for roofs up to 4m long and 700mm wide for roofs 4m or longer.
Fix wall plates, top and bottom, fix joists as you fix polycarbonate bars
Use 9mm economy fascias all round and square white gutters for a maintenance-free finish.
Not Sure? Email us, we are here to help.
