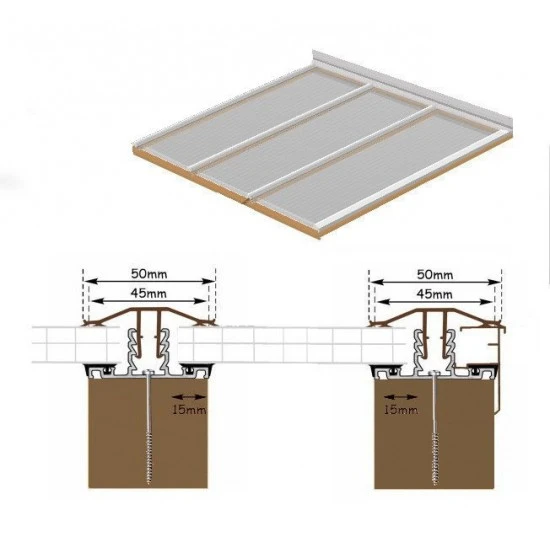

3.0 m Long x 3 m

The lean to roofing kit measuring 3 metres long by 3 metres wide provides perfectly balanced square coverage for homeowners and businesses throughout Bristol and Bath, delivering a versatile 9 square metre roofing solution with premium customisation options including clear, bronze, or opal sheet finishes combined with white, brown, or grey structural bars to achieve optimal aesthetic integration with diverse architectural styles. This well-proportioned system offers exceptional design flexibility, allowing property owners to specify transparent sheets for maximum natural light penetration in outdoor living areas, bronze for sophisticated solar control and glare reduction in entertainment spaces, or opal for optimal light diffusion with enhanced privacy in applications ranging from Bristol's Victorian terraces to Bath's Georgian townhouses and contemporary commercial premises. The comprehensive colour coordination options enable perfect architectural compatibility, with white bars providing clean, modern styling for contemporary properties, brown bars offering traditional warmth that complements period buildings and heritage areas, or grey bars delivering a sophisticated, contemporary appeal suitable for modern residential and commercial developments. The balanced square dimensions create substantial covered space while maintaining proportionate scale for typical residential gardens and commercial courtyards, making it ideal for covering medium-sized patios, creating comfortable carports, building workshop areas, or providing comprehensive shelter for outdoor dining and entertainment spaces that significantly enhance both residential living and business operations. The generous 3-metre depth offers excellent weather protection and valuable usable space underneath, making it particularly suitable for applications where reliable year-round shelter is essential for maximising outdoor space utilisation. This roofing system is engineered to handle Bristol and Bath's challenging weather conditions while offering the aesthetic versatility needed to meet local planning requirements and architectural guidelines, ensuring superior performance and visual appeal that enhances property values and functionality throughout the region's diverse residential and commercial neighbourhoods.

Select the type of polycarbonate and colour required.

Price includes (Actual coverage 3.260 mm)
3no 1050mm x 3m polycarbonate roof sheets
4no x 3m bars to go on timber
2no x 3m edge fillets
3no x 1050mm sheet closure
1no x 150mm flash band
Anti-dust tapes

Installation Guide

Step one

Fix your first edge bar as shown in Dia. 1. Slide the edge fillet up the groove on the bar as shown, then cut the bar to length, remembering to allow for a 50 mm overhang into the guttering. Cut the aluminium base 2 mm longer than the predetermined length of the polycarbonate sheeting, allowing for the end cap to fit later.
Drill and fix the bar into position,n screw with no less than six screws at 3- 400 mm centres, ensuring the drip on the edge trim is in the required place and neat from the external view. Repeat on opposite end Dia 1.
N.B. Where bars are butting against a wall, the edge trim is not required; fit the bar only.

Step two

You can choose to cut all sheets and then evenly space them out, or you can work toward cutting a sheet in half. Once you have decided, start fixing the centre base in your required position. Drilll and fix the bars with screws at 3- 400 mm M centres

IMPORTANT REMEMBER TO LEAVE A CLEAR EXPANSION GAP OF 4MM BETWEEN THE BAR AND THE POLYCARBONATE SHEETS.

Step three
Ensure all the rubber gaskets in the bars are flat with no bumps.

Step four
Cut your polycarbonate sheet to the length if not already done, ensuring that all swarf is removed. Use a vacuum or a condensation-free airline to remove swarf (never try to wash it out). Now fit anti-dust tapes to the sheet. Use the solid foil tape on the top of the sheet and the vented tape on the bottom of the sheet. Peellofff the backing tape and stick in place as shown. These tapes reduce condensation and keep out insects and dust, so ensure they fit correctly. Now, peel about 50 mm of the protective film down both sides and place the sheet in position.

Step Five
Position the PVCU caps so that the toothed legs locate inside the centre of the aluminium base. Press down firmly, then lightly hammer down with a rubber mallet or equivalent until the caps lock into place. As you work across the roof, complete flashing as you go (see tips).
When the flashing is complete and all caps are in place, remove the protective covering.g

Step Six
Fit the end caps into place. Now, cut the sheet closures to the length between the bars and push them in place as shown.

Tips

For polycarbonate cut-to-size orders, please order your polycarbonate sheets after you have fitted your bar. We can then cut out and tape your sheets to the correct size (width and length). Note that you should allow for expansion when ordering. (P.O.A)
If using lead flashing, ensure the lead (recommended) is fitted before the sheets and dress down as you install the roof panel. Fit your lead in sections of 2m and seal the overlap with a lead mat, 100mm.

Cleaning: Use mild soapy water. Try a small panel first to ensure there is no reaction. Never use solvent-based cleaners.
You should not need to use silicone; however, if you do, use only high-quality, low-modulus, neutral-clear silicone.
For a good quality roof that will last the test of time, avoid wide sheets. Try to use the recommended widths: 980 mm or less for roofs up to 4m long and 700mm wide for roofs 4m or more.
Fix wall plates, top and bottom, and fix joists as you fix polycarbonate bars
Use 9mm economy fascias all round and square white gutters for a maintenance-free finish.
Not Sure? Email u,s we are here to help.
