Large Roof Bars | 25mm 35mm Polycarbonate | Professional Grade

Timber-supported roof bars — 25mm & 35mm

Browse sizes and options below. Open the buying advice or ask our team for help choosing sheets and matching roof parts.

About this range & buying advice

glazing bars for 25mm polycarbonate Roof Sheets

Heavy-duty timber supported roof bars for 25 mm or 35 mm thick conservatory polycarbonate sheets. Up too 7 m long manufactured in white or brown 3 working days delivery from Bristol.

Installation

Measure and cut the polycarbonate sheet to length, allowing an extension of approximately 50mm to overhang the gutter. Cut the aluminium base section and the uPVC top section to the same length as the polycarbonate sheet.

Drill holes to suit a 5mm wood screw in the centre of the aluminium base between the toothed legs. The holes should be 100mm from each end and at no greater than 500mm intervals.

Screw aluminium bases to rafters using wood screws.

Lay polycarbonate sheets on rafters starting at one end. When all sheets are in position, remove the protective film and fit the uPVC top section by pushing the legs into the slots provided in the aluminium base. Push firmly home to ensure an adequate seal.

Fit endcaps to uPVC top capping. Fit end closure to polycarbonate sheet.

Can’t find the part you need?

You don’t need to know every product name. Describe your project and let us help with sizes, quantities and matching parts.

Prefer to call? 0117 971 9922

Let’s talk about your project

Tell us about your project and we’ll ring you back. Send your request here.

Your request is sent directly to our team through the shop’s contact system.

Brand: Master Plastics Model: SDB35

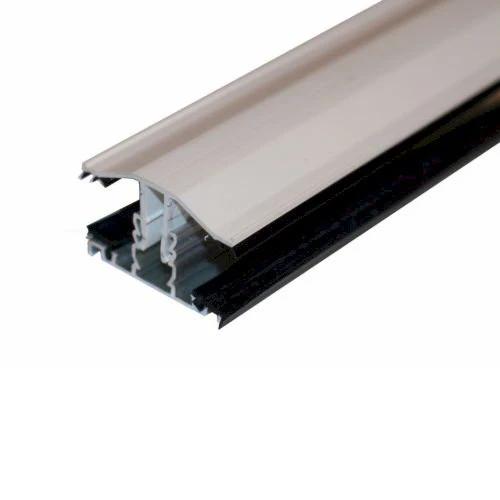

Roofing Bar White For 25mm or 35mm Thick Roof PanelsHeavy duty bar is designed to cope with 25mm and 35mm thick sheet thicknesses.Snap Down Bar Quick InstructionsMeasure and cut the roof sheet to length, allowing an extension of approximately 50mm to overhang the gutter. Cut the aluminium base section and uPVC top section to the same length as the polycarbonate sheet.Drill holes to suit a 5mm wood screw in the centre of the aluminium base between the toothed legs.The holes should be 100mm fr..
Starting From £40.98
Ex Tax:£34.15
Brand: Exitex Model: SDBEC
Available in White or BrownThe bar is not included, only the cap itself.You are buying 1 piece of end cap.1 x end cap..
Starting From £3.48
Ex Tax:£2.90
Brand: Master Plastics Model: P070
Polycarbonate Fixing Buttons - 10mm, 16mm, 25mm & 35mm | White & Brown Professional polycarbonate fixing buttons for secure sheet installation. Available to suit 10mm, 16mm, 25mm, and 35mm polycarbonate sheets in white or brown finishes. Essential roofing accessories for professional polycarbonate sheet fixing and weatherproofing. Professional Polycarbonate Sheet Fixing Solution Polycarbonate fixing buttons provide the essential connection between your polycarbonate sheets and the und..
£0.62
Ex Tax:£0.52
Brand: Geoplas Model: XSAT
Solid Foil Tape - Polycarbonate Sheet Sealing and Protection Tape Professional Solid Foil Tape for Polycarbonate Sheet Flute Sealing and Storage Protection Experience superior polycarbonate sheet protection with our solid foil tape. Solid tape is used on top of sheets to seal the flutes this helps to prevent dust and insects from entering the flutes to keep them clean providing essential protection for conservatory and glazing applications. Product Overview Product: Professional solid foil t..
£1.07
Ex Tax:£0.89
Brand: Geoplas Model: XADT
Anti-Dust Tape - Breathable Polycarbonate Protection Professional Anti-Dust Tape for Twin-Wall and Multi-Wall Polycarbonate Anti-dust tape for extruded polycarbonate sheets with walled internals, including twin-wall and multi-walled polycarbonate sheets. Anti-dust tape is breathable and prevents dust and bugs from entering the polycarbonate sheet. Product SpecificationsUse: Vented tape, use on the bottom of polycarbonate sheets Colour: Blue Dimensions: Price is per metreKey Features..
£1.37
Ex Tax:£1.14
Brand: Exitex Model: SDBFB
Brown Edge Trims To Finish RoofsThis trim needs to be fitted into one of the above bars Dimensions: 3 or 4m Lengths; The edge trim you use needs to be the same thickness as the roof sheets. 10mm, 16mm, or 25mmColour: WhiteSelect the correct sheet thickness and length from the selections. The edge trim converts a joining bar (not included) into an edge bar. The joining bar is required to allow for expansion and to prevent capillary leaks from the sheet. If your roof is longer than 4m, you..
Starting From £11.87
Ex Tax:£9.89
Brand: Master Plastics Model: SDBFW
Edge Trims To Finish Roofs WhiteThis trim needs to be fitted into one of the above bars Dimensions: 3 or 4m Lengths; The edge trim you use needs to be the same thickness as the roof sheets. 10mm, 16mm, or 25mmColour: WhiteSelect the correct sheet thickness and length from the selections. The edge trim converts a joining bar (not included) into an edge bar. The joining bar is required to allow for expansion and to prevent capillary leaks from the sheet. If your roof is longer than 4m, you..
Starting From £11.87
Ex Tax:£9.89
Brand: Master Plastics Model: VPC - FROM STOCK
Chrome Extendable Roof Vent Handle/Winder 127cm to 187cm - Professional Opening Tool Premium chrome extendable roof vent handle designed for safe operation of high-mounted roof vents and skylights. Extends from 127cm to 187cm (including handle and hook) for convenient access to vents up to 3 meters high—professional chrome effect finish for a modern aesthetic and enhanced corrosion resistance. Professional Chrome Roof Vent Solution Our extendable roof vent handle winder, featuring a chro..
£60.96
Ex Tax:£50.80
Brand: Master Plastics Model: EBBJF150
Self-Adhesive Flashing 150mm x 10m - Natural Lead Look Finish Professional self-adhesive flashing with authentic natural lead look finish for superior waterproofing and aesthetic appeal. 150mm x 10m roll featuring aluminium foil construction with bitumen rubber adhesive for strong, long-lasting waterproof seals on roofing and building applications. Premium Lead Look Waterproofing Solution Our lead look flashing combines the authentic appearance of traditional lead with modern self-adhesive te..
£27.36
Ex Tax:£22.80
Brand: Everbuild Model: EBBJF100
Self adhesive flashing with a natural lead look finish 100mm x 10m rollAluminium Foil, Bitumen Rubber Adhesive.Can form a strong waterproof seal...
£20.77
Ex Tax:£17.31
Brand: Everbuild Model: EBBJF225
Self adhesive flashing with a natural lead look finish 225mm x 10m rollAluminium Foil, Bitumen Rubber Adhesive.Can form a strong waterproof seal...
£39.58
Ex Tax:£32.98
Showing 1 to 11 of 11 (1 Pages)
