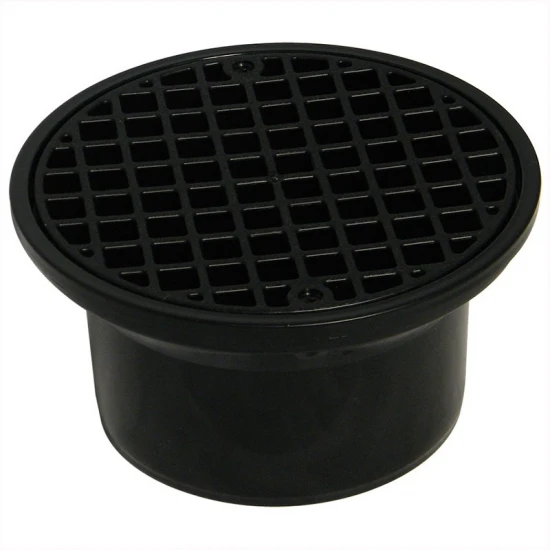

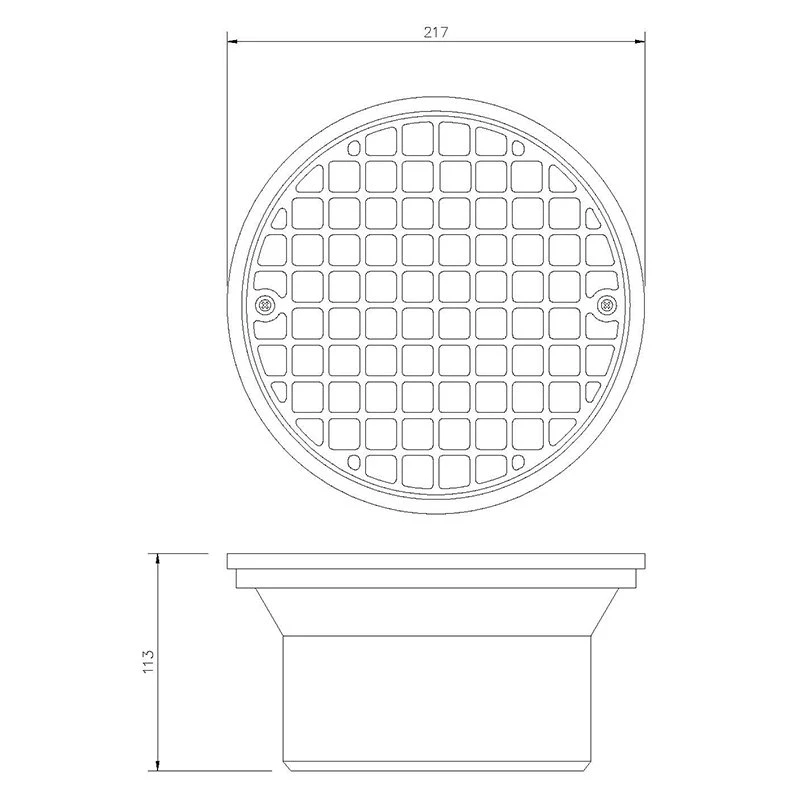

Round hopper and grid - D514 fits a D504 gully the depth can be extended if the gully is required lower in the ground by adding a 110 mm drainage pipe between the two.
Underground 110mm Drainage Pipe Plain 3-metres
Underground Drainage Systems are designed for use in gravity drainage and sewerage installations at depths of up to ten metres. Composition plastic drainage pipes and the majority of fittings are manufactured from un-plasticised Polyvinyl Chloride (uPVC).
Colour Golden Brown (not UV resistant)
Pipes and fittings for underground use are manufactured in golden brown/Terracotta.
110mm Ground drain pipe 3m plain - D043 All underground pipe and fitti..
110mm Drainage Pipe Socketed 3mUnderground Drainage Systems are designed for use in gravity drainage and sewerage installations at depths of up to ten metres. Composition All drainage pipes and the majority of fittings are manufactured from un-plasticised Polyvinyl Chloride (uPVC).Colour Pipes and fittings for underground use are manufactured in golden brown/terracotta.110mm underground drain pipe 3m socketed - D143 All underground pipe and fittings are manufactured to BS4660/EN1401-..
110mm Under Ground Pipe Coupling Single SocketPipe coupling joint with a single push-type socket. Suitable for gravity drainage and sewerage installations at depths of up to 10-metres. To be solvent welded to plain ended pipe leaving a push-fit joint. Strong durable uPVC. Push-fit joint through an innovatively designed seal and snap-cap system. The use of silicone lubricant on all seals facilitates jointing.BS 4660 BS EN 1401-1 1998. Colour: Terracotta/Brown Diameter: 110mmFeatures
..
110mm Under Ground Pipe Coupling/Union Double Socket - D105Pipe Coupling Double Socket. Joins two plain-ended underground pipes together. Strong. durable uPVC. Lightweight and easy to work with. Push-fit joint through an innovatively designed seal and snap-cap system. The use of silicone lubricant on all seals facilitates jointing.
BS 4660 BS EN 1401-1 1998.Colour: Terracotta/BrownDiameter:110mmFeatures
Suitable for High-Temperature Waste DischargesFits 110mm Pipes
Ring Seal Joints
S..
110mm Under Ground Pipe Single Socket Bend 87.5° - D161Single Socket Bend 87.5 Degree. Socket to spigot. Push-fit joint through an innovatively designed seal and snap-cap system. The use of silicone lubricant on all seals will facilitate jointing. Pipe uPVC.Colour: Terracotta/BrownDimensions 110mm / 87.5°Features
Suitable for High-Temperature Waste Discharges Fits 110mm Pipes
Ring Seal Joints
Suitable for Gravity Drainage Sewerage
Install to Depths of 10-metres..
Description:Gully Riser 200mm. For use with Bottle Gullies. Can be used on new installations or existing gullies. raises gully grating by up to 200mm.Features:
Can be Easily Cut to Length to Suit Different Ground Levels
110mm PVCu
Ring Seal Joints
Suitable for Gravity Drainage & Sewerage
Install to Depths of 10m..
Description: (SP435B) Black 135 Degree Offset Bend - Bottom for use with Flopast 110mm soil pipe or industrial gutter systems. lower offset bend for using 110mm pipes as downpipes on industrial guttering to divert the downpipe around soffits.Dimensions: 110mmColour: Black..
Gutter Black Half Round 2m 112mm Stylish Gloss Black Half Round guttering, 2m long x 112 mm wide x 52mm depth. Should be fitted at 1:350 fall for optimum flow rate. 2m lengths of black half round guttering standard size also available in 4m and 5m lengths.Manufacturer : AquaflowColour : Black...
112mm Black Half Round Gutter Stop End Outlet 112mm Gloss Black StopEnd Outlet gets pipes in close to walls. This is for use with Floplast 112mm Half Round Gutter and 68mm downpipe. A fixing point on each side will be drilled out on whichever side you want to fix it on.Manufacturer: Aqua flowColour: Black..
White Round to Cast Iron Adapter (RD5W)Gloss White Half Round 112mm Gutter converter, this allows you to connect Half Round 112mm Guttering to existing half Round Cast Iron guttering. Fitted with a rubber and clip at the end for the gutter and 2 clips and a nut and bolt to attached the cast iron side, it is recommended that you use a Roof and Gutter sealant to seal this joint (link below for sealant).Colour: White..
Side Rafter Gutter Brackets (RR2) GalvanisedSide rafter bracket for use on properties with overhanging tiles and exposed joist Galvanised silver finish. The rafter bracket can be used with round square and deep flow systems. The fall of the guttering can be adjusted via the bracket making installation easier.It is supplied with a bolt wing nut and washer.InstallationBrackets are screwed into place in the side of the joist or from above with the top fix version; the front of the bracket has a slo..
Top Fix Rafter BracketThese brackets are installed during the roofing process they simply nail or screw into the top of the roof joist before the roof coverings are added. They are easier to fit than other brackets due to easy access.How far apart do you put brackets for guttering?Rise and Fall gutter bracket spacing needs to meet the needs of the type of gutter used.MaterialsSteel brackets are galvanised to reduce rusting to ensure a long life span.UniversalTop fix brackets are universal, and a..
Downpipe To Drain Connector (D96) provides essential underground drainage connectivity with universal compatibility for comprehensive rainwater management systems. This universal rainwater 110mm adaptor accepts 65mm square and 68mm round downpipes, offering versatile installation options that accommodate diverse downpipe configurations across residential and commercial properties. External rainwater downpipes can be connected directly to a surface water drain, depending on the design, via a gull..
