Slate Roof Vents

Slate Roof Vents

Name: Slate Roof Vents
Brand: Ariel
SKU: HV1
Price: 11.27 GBP
Availability: InStock

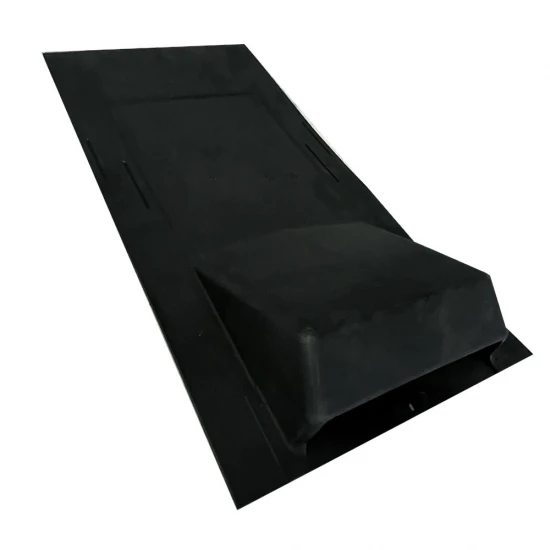

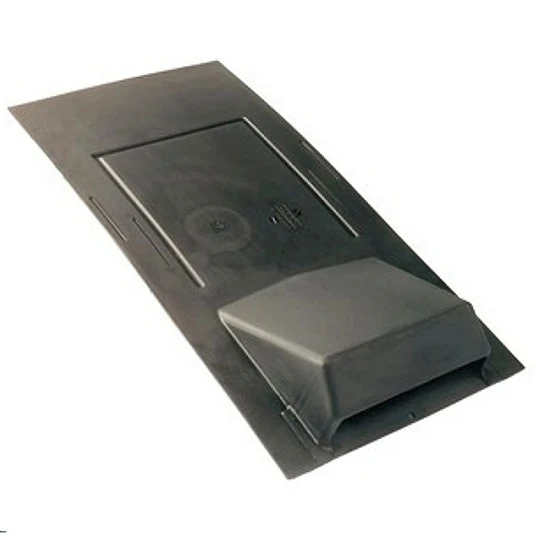

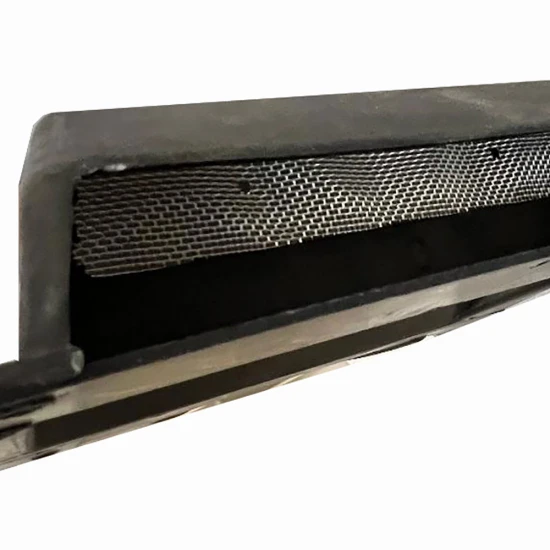

Corovent economy slate vents provide low or high-level discreet ventilation. • Provides 7200mm2 of ventilation • Designed for use with natural or man-made slate • Fitted with integral insect grille and hole for fixing nail

All vents are subjected to 3 separate wind and rain penetration tests and a deluge test to simulate extremely harsh weather based on conditions developed as part of a DoE Partners in Technology Programme as used by the Building Research Establishment (BRE). All vents exceed the pass criteria under all conditions.

Product Specifications HV1/HV2 Length Width HV1 – 600mm, HV1 – 300mm, Material Colour UV stabilised Polypropylene Blue/Black Thickness Height 3mm 70mm Product Requirements Statutory Requirements To provide ventilation in accordance with Building Regs Approved C2 BS5250:2011 and Building Standards (Scotland) Regulations. Functional Requirements To give at least 7200mm2 free ventilation. The vent should properly fit the surrounding slates. The head and side laps must conform to the surrounding slates. Suitable for fixing in accordance with BS5534: Part 1:2014. Give minimum cutting of battens and surrounding slates. The minimum Roof Pitch is 20 degrees.

Installation: Roofline Vents for Slate Roof

Complete roofing to one course below the position for the slate vent.
Hold vent in position as centrally as possible between the rafters and mark where the vent spigot touches the underlay. For 500mm x 250mm slates only - cut and remove section of batten.
Cut underlay in a cross, fold up and back, and nail over battens.
Cut slates for the next course below the vent.
Fit slate vent and nail to batten.

Slate Vent	Ventilation Area	Airflow Resistance	Roof Pitches	Water Resistance
HV1/HV2	7 200mm2	20 Pascals @ 30ltr/sec	Over 20°	Exceeds all relevant parts of the DoE Partners in Technology Programme
